MPO/MTP Adaptor:光騰光電GENERAL OPTICS CORP.

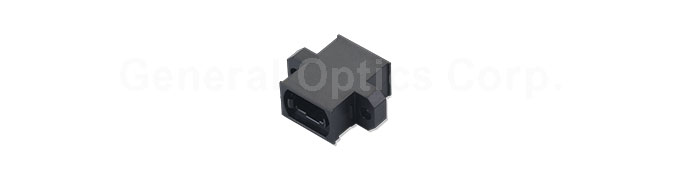

MPO/MTP Adaptor


Description

"General Optics provides durable MTP brand adapters that provide quick connection for up to 72 optical fibers. Precision alignment is achieved with patented MTP brand connector guide pins combined with the tightly controlled guide pin holes on MT ferrules.

Numerous single port and ganged configurations are available to satisfy a variety of applications. Our adapters are fully compliant with IEC Standard 61754-7 and TIA 604-5 – Type MPO.



Feature Application
  • One piece adapter design maximizes coupling strength while minimizing debris generation
  • Compatible with our connectors in fiber counts ranging from 4 to 48
  • Easy Installation
  • Optimal coarse alignment to minimize pin to ferrule debris generation



  • Array trunk cabling
  • Array fiber to single fiber cassettes
  • High fiber density card edge access
  • Optical switching interframe connections
  • Meets IEC Standard 61754-7
  • Meets TIA/EIA 604-5 Type MPO
  • 10G Fiber Channel Compliant
  • 40G and 100G IEEE 802.3
  • SNAP 12
  • QSFP
  •
