40G QSFP+:光騰光電GENERAL OPTICS CORP.

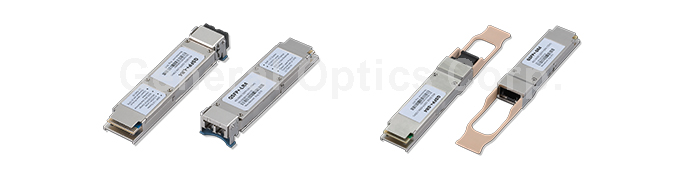

40G QSFP+








Feature Application
  • Hot Pluggable
  • Aggregate Bandwidth of up to 40G
  • 4 Independent Full-duplex Channels
  • IEEE 802.3ba Compliant
  • QSFP+ MSA Compliant
  • Operating Teperature:0~70℃
  • Single 3.3V Power Supply



    		•
  • High-performance Backplane
  • Computer Cluster Cross-connect
  • Switch, Router and HBAs
  • 10G/40G Ethernet (XAUI)
  • Infiniband -SDR, DDR, QDR
    		•
    Product Information

    Part Number

    Data Rate

    Wavelength

    Reach

    Connector

    Fiber Type

    TX Power (dBm)

    Rx Sens. (dBm)

    Temp.
    Range(℃)

    QSFP-SR4

    44.8Gbps

    850nm

    150 m

    MTP/MPO

    MMF

    -7.6~1

    ﹤ -9.5

    0~70

    QSFP-eSR4

    44.8Gbps

    850nm

    300 m

    MTP/MPO

    MMF

    -7.3~1

    ﹤ -9.9

    0~70

    QSFP-IR4 PSM

    44.8Gbps

    1310nm

    1.4 km

    MTP/MPO

    SMF

    -5.5~1.5

    ﹤ -11.5

    0~70

    QSFP-IR4

    44.8Gbps

    CWDM

    2 km

    LC

    SMF

    -7~2.3

    ﹤ -11.7

    0~70

    QSFP-LR4

    44.8Gbps

    CWDM

    10 km

    LC

    SMF

    -7~2.3

    ﹤ -13.7

    0~70

    QSFP-LR4 PSM

    44.8Gbps

    1310nm

    10 km

    MTP/MPO

    SMF

    -5.5~1.5

    ﹤ -12.6

    0~70

    QSFP-ER4

    44.8Gbps

    CWDM

    30 km

    LC

    SMF

    -3.7~4.5

    ﹤ -20.2

    0~70
